THe drawing elevation is usually Zero, but not always. when you change the UCS, you've just ensured that any error will be magnified because the Z is not the SAME 0, it was selected from a ZERO PLANE, not the zero point. it's using the relationship to Z=0, and that might not be where you think it is. How you guys predict it without selecting the point is beyond me. If you change USC between copy and paste, be aware that your Z-layer plane is only the same at a single point (or ray) if it's different at all. Now rotate the image and see if it is really using that point as the basepoint, or if the distance from Z is maintained. Next draw a simple horizontal line, and Then use copyclip to paste the object to the end of that line. Then view from several angles using 3dorbit to see if that line is doing what you expected it to do. Before running the copyclip, use the line command to draw a line from 0,0,0 to wherever you think your basepoint will be. This applies when the DWG format is different between the versions.Upon changing the ucs, your copyclip may not be using the basepoint you think it is. AutoCAD 2018) and try to paste it into an older version (i.e.: AutoCAD 2017), the paste operation will fail, for the same reason you cannot Wblock out entities and Insert them in this manner either. Also note that if you copy data from a newer version (i.e. Type COPYCLIP then enter (or press ctrl+C). Select all objects (or entities) you want to copy. You must copy that drawing and paste it to your original drawing. Not every COPYBASE or COPYCLIP operation results in a separate, unique. If you need to have that part of drawing in your original drawing, you have an extra work.
You can paste the contents of the Clipboard into a document or drawing.
Change your view type to “Details” if needed, then sort the files by date, newest at the top.

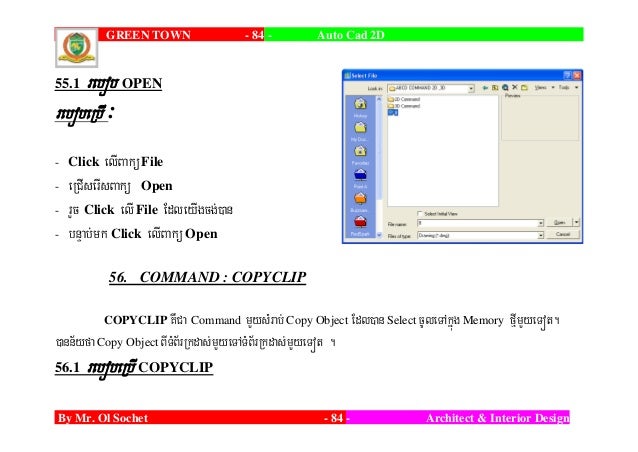

COPYCLIP AUTOCAD WINDOWS
It will take you to the Windows temp folder. In the address bar, type in %temp% and press enter.You may still be able to retrieve the AutoCAD entities by finding the. So why do you need to know this? Maybe you cut or copied something to the clipboard and then subsequently copied something else to the clipboard. The actual clipboard data also includes a bitmap other miscellaneous data, but when you paste this into AutoCAD, only the AutoCAD entities are inserted. When you copy AutoCAD geometry to the clipboard, not only is the data written out to a DWG file, but a piece of data is also added to the Windows clipboard so that when you go to paste this data, AutoCAD will know which DWG file to grab and insert for you.
A new copy overwrite the last one – except that sometimes it does not. Like traditional Windows clipboard commands, only the last set of data copied is available for pasting. This is similar to you manually using the WBLOCK command, except that when you COPYCLIP or COPYBASE, you do not provide a file name or location, and in the case of COPYCLIP, you do not provide a base point either. Instead, when you cut or copy AutoCAD objects to the clipboard (using COPYCLIP or COPYBASE, not the internal COPY command), what AutoCAD actually does it write those entities out to a. But for the purpose of moving AutoCAD data around, the traditional Windows clipboard is not used. Of course there are add-on programs available that expand the clipboard and allow multiple copies to be retained.Įver since AutoCAD became a MDI application, it has supported cut, copy, and paste commands. When you perform the next cut/copy action, the new data is stored in memory and the previous data is removed. Generally speaking, when you copy (or cut) objects in Windows applications, to paste into the same or different application, Windows stores the data in a defined format and holds on to it until you replace it with a new cut/copy action.
